PRODUCT SHEET

High Temperature High Pressure (HTHP) Cell

The Specac High Temperature High Pressure (HTHP) Cell is engineered for the characterization of solid samples, including heterogeneous catalyst systems. It supports analysis under controlled temperature up to 800 °C and pressure up to 1000 psi with a gaseous atmosphere supplied via up to three separate gas feeds.

The cell enables three experimental modes: transmission, reflectance, and thermal decomposition of solids, allowing comprehensive sample analysis. Its robust construction, combining 316 stainless steel body and Incoloy heated components, assures durability and thermal resistance.

Features and Purposes
  • Equipped with two pressure certified ZnSe window assemblies for IR radiation transmission and reception.
  • Supports three analysis modes: Transmission, Specular Reflectance, and Decomposition.
  • Integrated safety features including temperature trips and water-cooled top and bottom plates to prevent heat damage to the spectrometer.
  • Burst disc pressure release device to avoid over-pressurization and protect ZnSe windows.
  • Sample environment precisely controlled for temperature and pressure, enabling bulk and surface analyses.
  • Sample pans allow gas analysis from thermal decomposition within the cell.
  • Compatible with a wide range of FTIR spectrometers from manufacturers such as Bruker, PerkinElmer, Thermo Nicolet, Jasco, Shimadzu, and others.

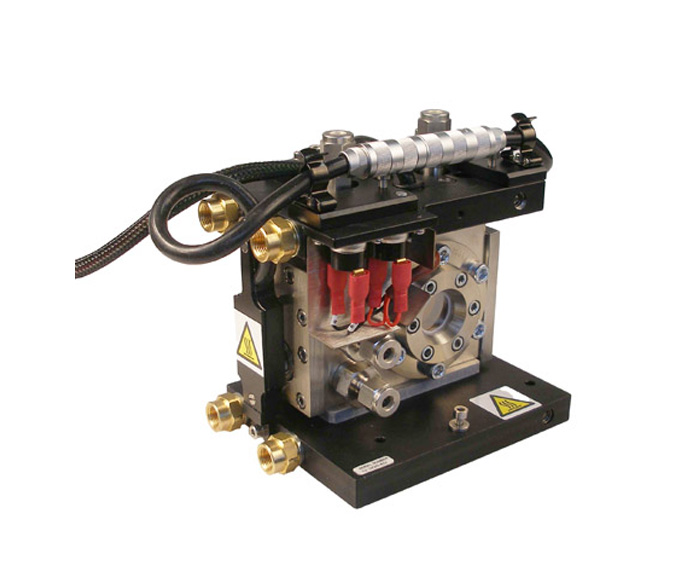

05850-High-Temperature-High-Pressure-Cell-2-2

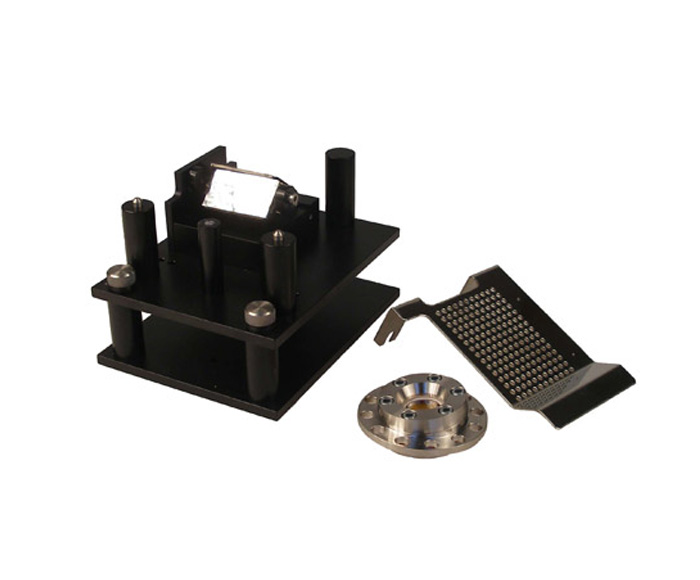

05860-HTHP-Specular-Kit-2
DOCUMENTS AND RESOURCES
High Temperature High Pressure Cell Controller User Manual
High Temperature High Pressure Cell Reflectance Mode Upgrade Kit User Manual
High Temperature High Pressure Cell User Manual
High Temperature High Pressure Cell Product Datasheet
