The Storm 10 cm Gas Cell is designed for routine infrared spectroscopic analysis of gases and vapors at room temperature, low pressures, and static or flow conditions. It features a fixed 10 cm optical pathlength and a 38 mm clear aperture, compatible with standard optical spectrometers via a 3″ by 2″ slide mount.

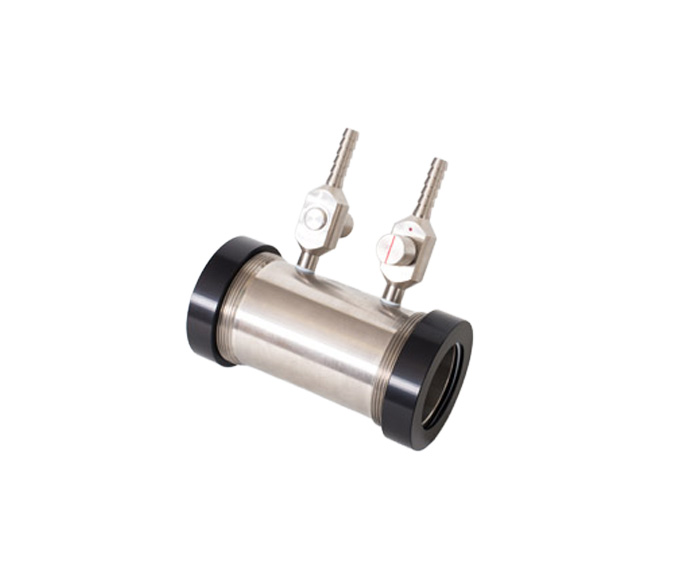

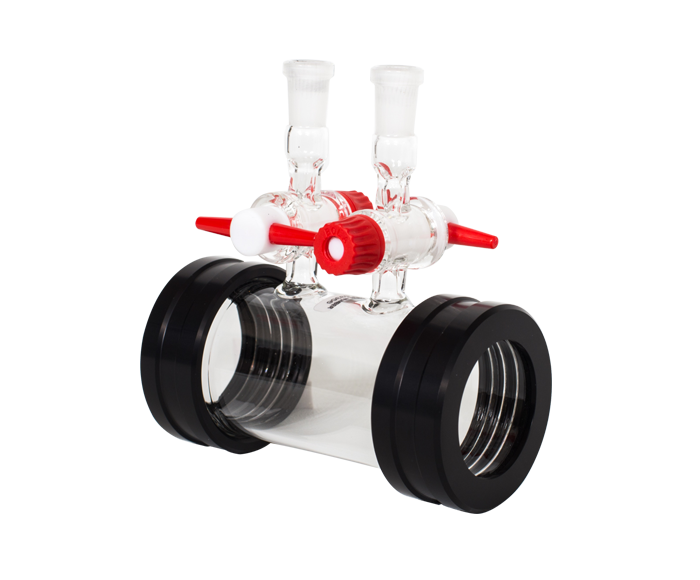

The cell is available in Pyrex™ and stainless steel versions. Window materials can be selected from NaCl, KBr, CaF2, BaF2, ZnSe, or fused silica to suit specific infrared transmission requirements. The Pyrex version uses Pyrex™ and PTFE taps, whereas the stainless steel model employs vacuum stopcocks with stainless steel and Viton® seals for chemical resistance and durability.

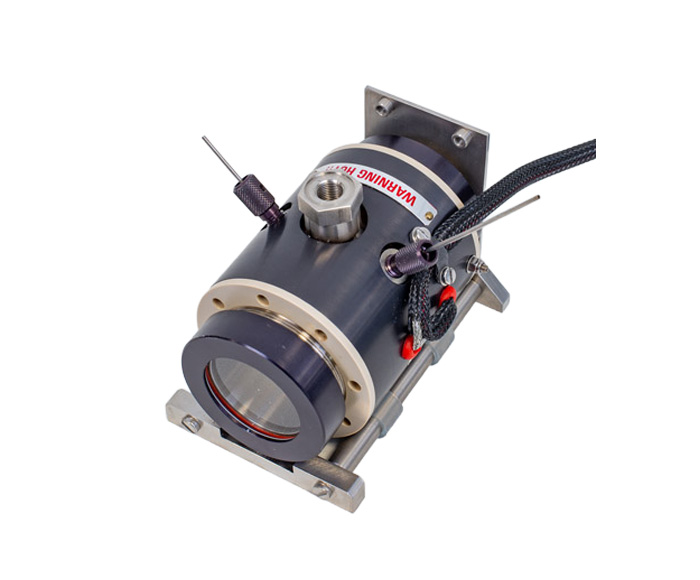

A heated stainless steel variant is offered to operate from ambient temperature up to 250°C, supporting spectroscopic studies of vapors or gases in both vacuum and atmospheric conditions (up to 1 bar). This heated cell integrates a low voltage (30 V) heating system with programmable temperature control and optional RS232/RS485/USB interface, and includes a thermocouple for precise temperature monitoring. It can be configured for flow mode using stainless steel flow tubes, replacing the injection septum port.
