PRODUCT SHEET

Micro Compression Cell

The Micro Compression Cell is designed for FTIR transmission and infrared microscopy applications involving soft solid or semi-liquid samples. It enables compression and flattening of the sample between two infrared transparent windows to optimize signal acquisition across a 7.0 mm clear aperture.

The device features a unique front cap mechanism that compresses the sample without rotating the windows, thereby minimizing sample disturbance. It is compatible with standard spectrometer sample compartments via a 3” by 2” slide mount.

Features and Purposes
  • Uniform pressure distribution across the sample supports greater reproducibility of results.
  • The non-rotating window design minimizes sample displacement during compression.
  • 7.0 mm clear aperture suitable for FTIR spectrometers with standard DTGS detectors and for infrared microscopes, allowing multiple samples simultaneously.
  • Interchangeable window materials: NaCl, KBr, CaF2, BaF2, or ZnSe to meet chemical compatibility and spectral range requirements.
  • Standard 3″ x 2″ slide mount compatible with all commercially available spectrometers.

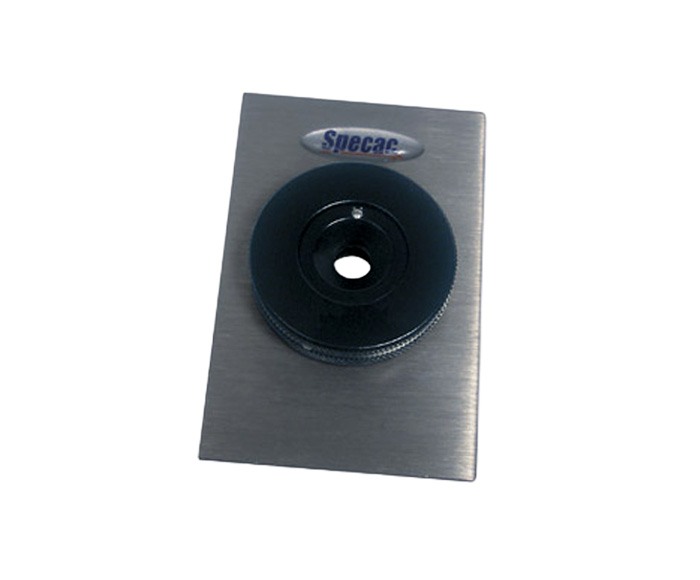

02520-Microcompression-Cell-2
COV_02520-Microcompression-Cell
DOCUMENTS AND RESOURCES
Micro Compression Cell User Manual
